Brand Name
Evolution Aqua EvoUV UVCs
Multi-award winning U.K. based manufacturer Evolution Aqua have almost two decades of experience in designing and creating specialist pond filtration systems, in which time they have become one of the most respected aquatic brands in the world.
The Evolution Aqua EvoUVs are designed to improve water clarity by eradicating suspended single celled algae before they can begin to create an algae bloom. These UVCs can be installed in a variety of applications such as within a drum filter system, an Evolution Aqua Nexus filter system or as a standalone addition to a pond with an existing mechanical filtration system in place to 'polish' the water.
Easy to maintain and service, the EvoUVs are a great option for any aquatic professional. Assembly on site is easy and requires limited tools for cutting down any stepped hose tails and for screwing in the stainless steel mounting plates. The 55w version is supplied as standard with two stepped hose tails (¾” / 1" / 1¼" / 1½") while the 110w version is not. Instead, the 110w features a 2" imperial solvent weld inlet/outlet that can either be connected directly to solvent weld pipe or connected to flexible pipe through the use of our double hose tail kit (PNF7992).
A handy setup and installation video can be found in the images section of this page.
Other options within the Evolution Aqua range with varying UVC power and flow rates are also available upon request.
The Evolution Aqua EvoUVs are designed to improve water clarity by eradicating suspended single celled algae before they can begin to create an algae bloom. These UVCs can be installed in a variety of applications such as within a drum filter system, an Evolution Aqua Nexus filter system or as a standalone addition to a pond with an existing mechanical filtration system in place to 'polish' the water.
Easy to maintain and service, the EvoUVs are a great option for any aquatic professional. Assembly on site is easy and requires limited tools for cutting down any stepped hose tails and for screwing in the stainless steel mounting plates. The 55w version is supplied as standard with two stepped hose tails (¾” / 1" / 1¼" / 1½") while the 110w version is not. Instead, the 110w features a 2" imperial solvent weld inlet/outlet that can either be connected directly to solvent weld pipe or connected to flexible pipe through the use of our double hose tail kit (PNF7992).
A handy setup and installation video can be found in the images section of this page.
Other options within the Evolution Aqua range with varying UVC power and flow rates are also available upon request.
Specification

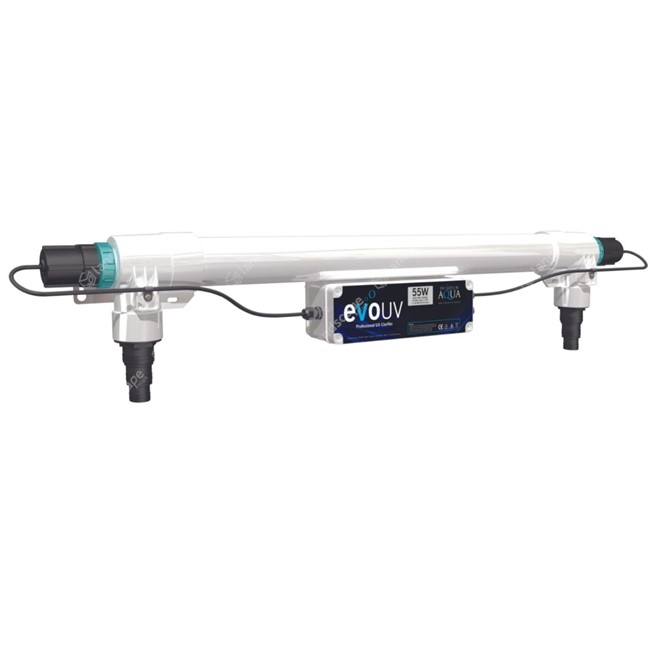

Evolution Aqua EvoUV - 55w
Product Code: PNF7940
Dimensions: Length 990mm; Depth 85mm; Height 153mm (approx); UVC power 55w; Inlet/outlet thread size 1½"; Max. flow rate 20,000 l/hour
Product Code: PNF7940
Dimensions: Length 990mm; Depth 85mm; Height 153mm (approx); UVC power 55w; Inlet/outlet thread size 1½"; Max. flow rate 20,000 l/hour

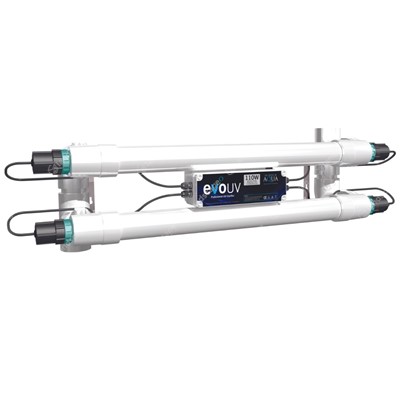

Evolution Aqua EvoUV - 110w
Product Code: PNF7960
Dimensions: Length 990mm; Depth 195mm; Height 280mm (approx); UVC power 110w; Inlet/outlet size 2" (solvent weld); Max. flow rate 25,000 l/hour
Product Code: PNF7960
Dimensions: Length 990mm; Depth 195mm; Height 280mm (approx); UVC power 110w; Inlet/outlet size 2" (solvent weld); Max. flow rate 25,000 l/hour
Evolution Aqua double hosetail inlet/outlet kit for Evo UV 110 - 13mm/19mm/25mm/32mm/38mm
Product Code: PNF7992
Kit contains all fittings (not including solvent weld adhesive) required to convert both the inlet and outlet on the Evolution Aqua Evo UV 110w to hosetails for flexible pipe work.
Product Code: PNF7992
Kit contains all fittings (not including solvent weld adhesive) required to convert both the inlet and outlet on the Evolution Aqua Evo UV 110w to hosetails for flexible pipe work.
