IN-LITE® HYVE Recessed Lights - 12v
Unhide your garden with in-lite®.

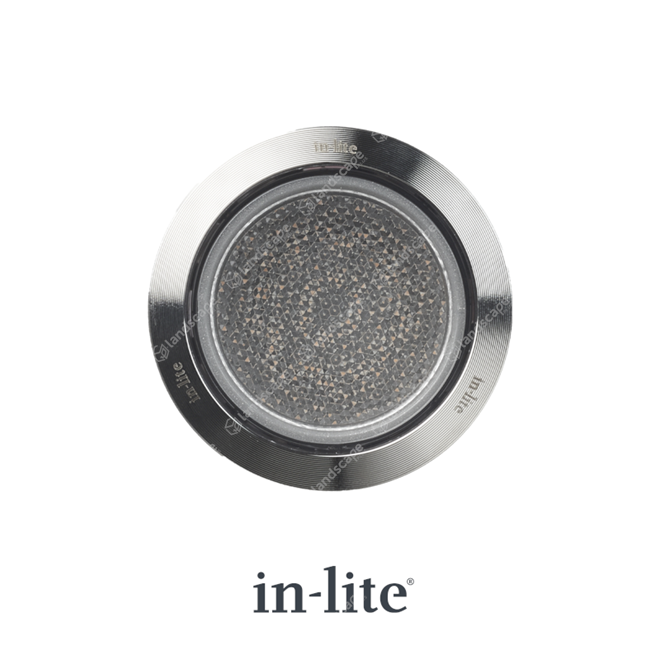

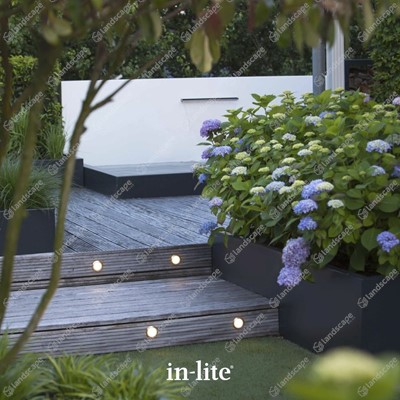

The in-lite® HYVE feature a 68mm Stainless Steel bezel and produce just 17 lumens of light. These fittings come alive at night as they feature a honeycomb style lens that produces an attractive, low-glare, warm light with a beam distance of around 1m. This makes them ideal for use as marker or accent lighting around areas with high traffic such as walkways, paths, decking, or even driveways. They are suitable for drive-over applications. in-lite® recommend spacing the HYVE fittings around every 1½ to 2m.
To enable installation into gravel or soil, the BOX 100 accessory can be used. This accessory acts as a canister, allowing the product to be installed securely into these loose materials. For spike mounting into soft ground, the in-lite® SPIKE accessory can be used. If a square bezel is preferred but the fixtures are being mounted in wood or stone, the PLATE 75 accessory can be used instead. The PLATE 75 simply clips onto the HYVE, creating a square bezel that measures 75mm x 75mm.
There are two other options in the HYVE concept family, the HYVE 22 and HYVE 22 RVS. Both of these fixtures feature a 2 lumen light output and Ø22mm cut-out. The HYVE 22 has no bezel and is completely seamless when installed, while the HYVE 22 RVS has a 28mm Stainless Steel bezel.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
The in-lite® HYVE feature a 68mm Stainless Steel bezel and produce just 17 lumens of light. These fittings come alive at night as they feature a honeycomb style lens that produces an attractive, low-glare, warm light with a beam distance of around 1m. This makes them ideal for use as marker or accent lighting around areas with high traffic such as walkways, paths, decking, or even driveways. They are suitable for drive-over applications. in-lite® recommend spacing the HYVE fittings around every 1½ to 2m.
To enable installation into gravel or soil, the BOX 100 accessory can be used. This accessory acts as a canister, allowing the product to be installed securely into these loose materials. For spike mounting into soft ground, the in-lite® SPIKE accessory can be used. If a square bezel is preferred but the fixtures are being mounted in wood or stone, the PLATE 75 accessory can be used instead. The PLATE 75 simply clips onto the HYVE, creating a square bezel that measures 75mm x 75mm.
There are two other options in the HYVE concept family, the HYVE 22 and HYVE 22 RVS. Both of these fixtures feature a 2 lumen light output and Ø22mm cut-out. The HYVE 22 has no bezel and is completely seamless when installed, while the HYVE 22 RVS has a 28mm Stainless Steel bezel.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Specification
IN-LITE® HYVE recessed light (Ø68mm bezel) - S/Steel - 0.8VA - 12v - w/white (74°)
Product Code: LIN4056

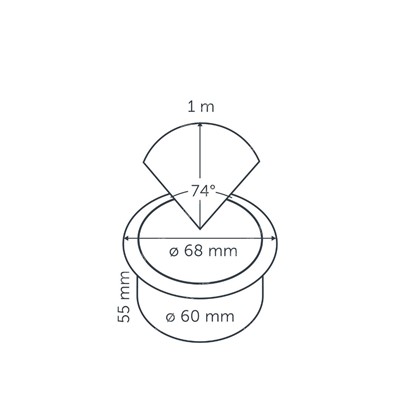

Dimensions: Ø of body 60mm; length of body 55mm; Ø of bezel 68mm; cut-out size Ø60mm; cable length 0.6m (approx.)
Product Code: LIN4056
Dimensions: Ø of body 60mm; length of body 55mm; Ø of bezel 68mm; cut-out size Ø60mm; cable length 0.6m (approx.)
