IN-LITE® CBL Two-Wire System Cables

One thing all in-lite® systems share is they all require the two-wire IN-LITE® CBL cable for the EASY-LOCK connectors to work correctly and remain waterproof. As the in-lite® systems all run on 12v power, they are totally safe, with adults and children protected against harmful electric shocks. As a result the cable does not need to be laid in trenches and can instead be simply laid on the surface in borders, or alternatively hidden under a light layer of mulch or top-soil.

The specially formulated coating on the in-lite® system cable makes it self-healing, which means the EASY-LOCK connectors can be removed from the cable and repositioned without any permanent damage, and remaining waterproof.

There are two types of cable to suit the requirements of your project.

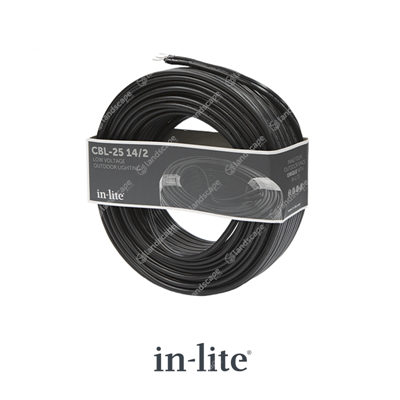

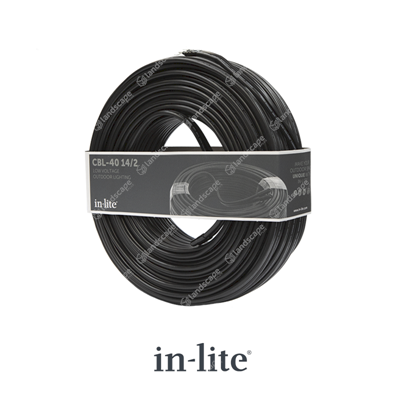

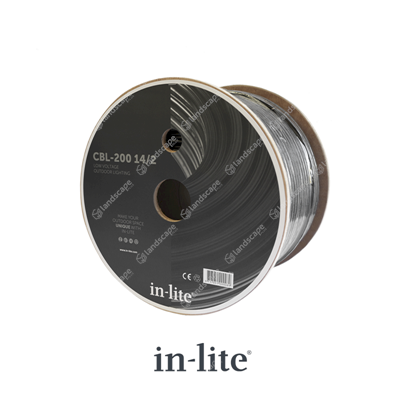

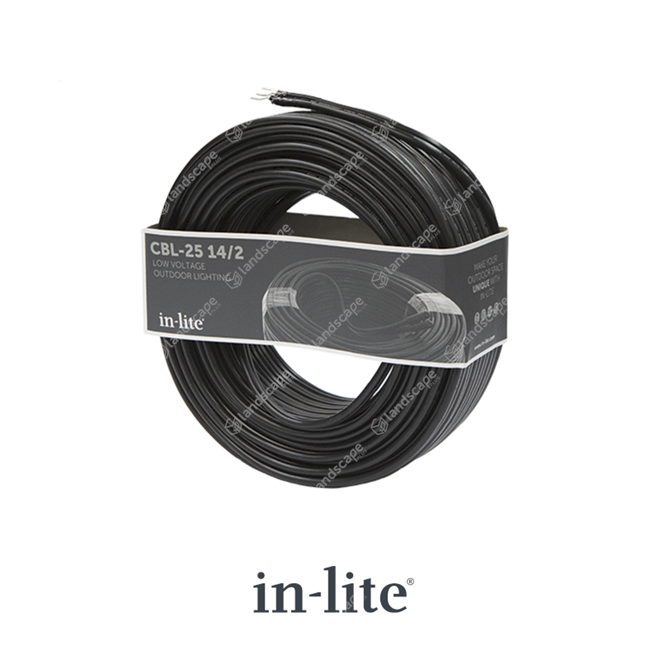

• The smaller diameter of the two available types, the 14/2 gauge cable is suitable for cable run lengths of up to 40m from the HUB transformer. They are available in reels of 25m, 40m or 200m.

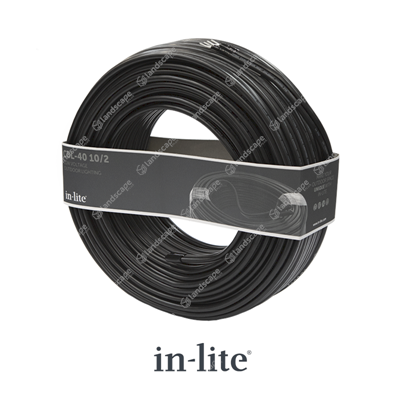

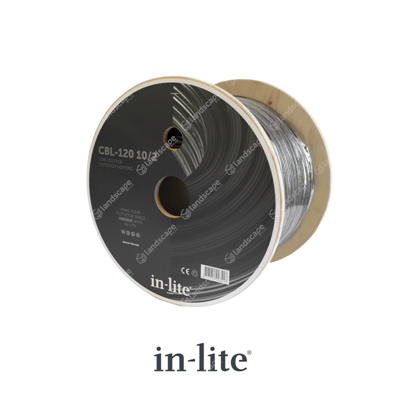

• The larger diameter 10/2 gauge cable is suitable for an impressive cable run length of up to 80m from the HUB transformer. These are instead available in 40m and 120m lengths.
