IN-LITE® BIG FLUX Recessed Lights - 12v

Unhide your garden with in-lite®.

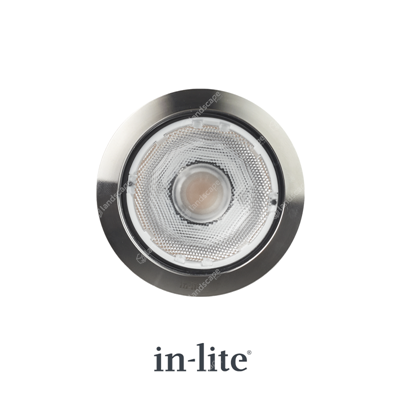

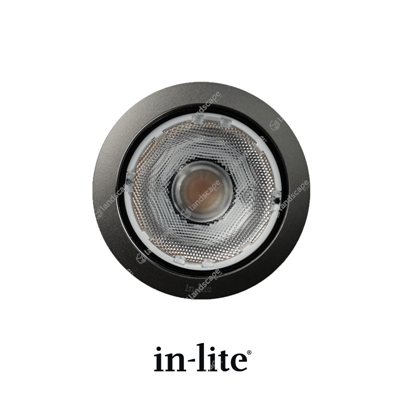

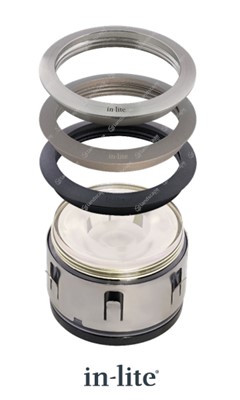

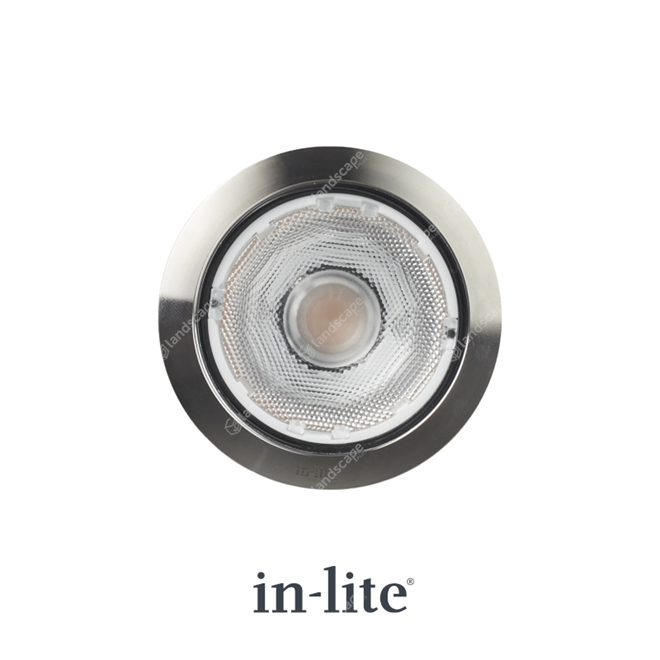

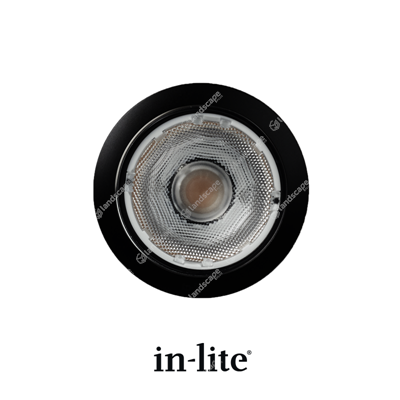

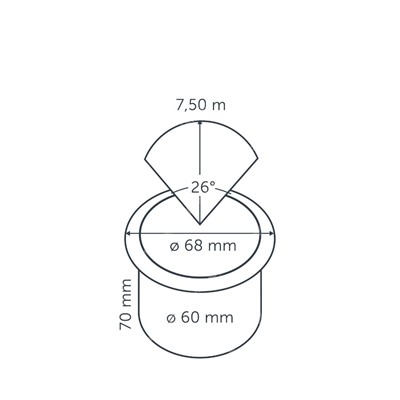

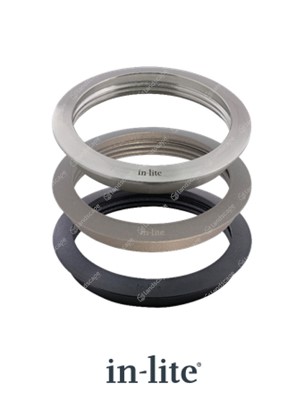

The in-lite® BIG FLUX recessed lights are extremely versatile and are ideal for uplighting feature walls, facades, sculptures, hedges or large multi-stem trees. They produce a much brighter light than the standard FLUX, with a focused 26° beam of light that can illuminate up to a distance of 7.5m. They require a Ø60mm cut-out for installation into paving, decking or stone. They are available with three different bezel colours which are easily replaceable if required; Stainless Steel and Black as standard, or Pearl Grey upon request.

To enable installation into gravel or soil, the BOX 1 accessory can be used. This accessory acts as a canister, allowing the product to be installed securely into these loose materials. For spike mounting into soft ground, the in-lite® SPIKE accessory can be used. If a square bezel is preferred but the fixtures are being mounted in wood or stone, the PLATE 1 accessory can be used instead. The PLATE 1 simply clips onto the BIG FLUX, creating a square bezel that measures 75mm x 75mm.

There are several other options in the FLUX concept family. The FLUX is a similar fitting to the BIG FLUX but with a much lower light output for lighting smaller elements. The BIG FLUX NARROW is both brighter and features a very narrow beam for uplighting elements up to 11m tall. The BIG FLUX ASYMMETRIC features an asymmetric lens, meaning it has a wide beam on one axis and a narrow beam on the other.

Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.

Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
