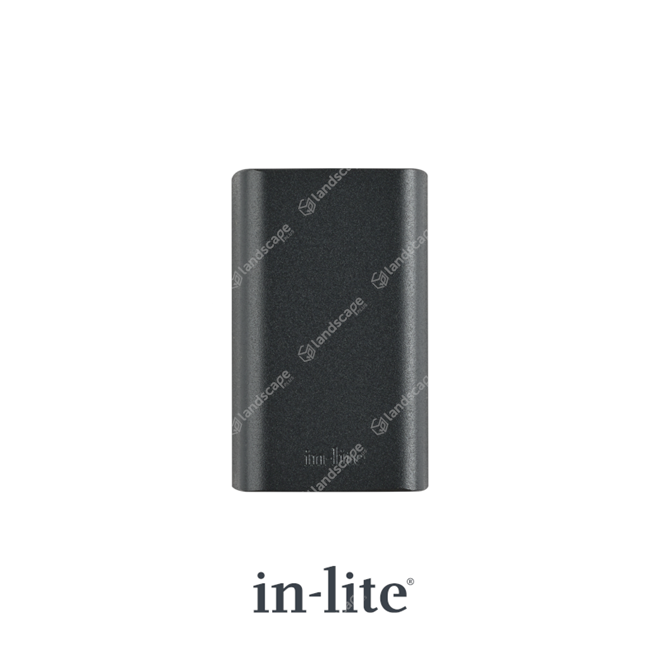

IN-LITE® ACE DOWN Wall Lights - 12v
Unhide your garden with in-lite®.

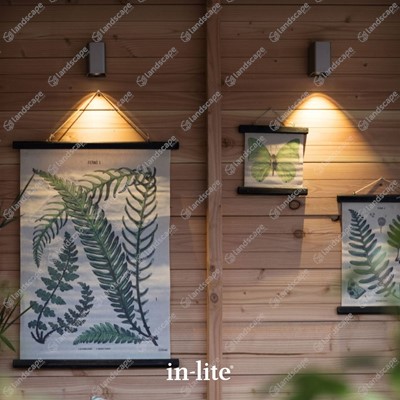

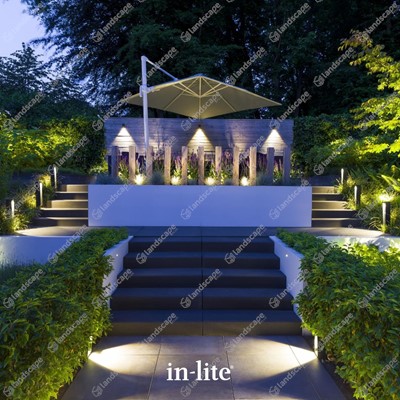

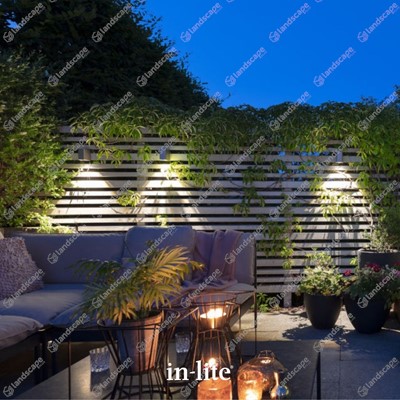

The low voltage in-lite® ACE DOWN wall lights produce a focused beam of light from one side of the fixture, making them suitable for downlighting when mounted on walls or fences. The light source is recessed within the fixture, helping to reduce glare. in-lite® recommend spacing the ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters. Available with a Dark Grey or Corten finish as standard, with Rose Silver or White upon request.
Installation is easy using the provided screws and wall plugs. Instructions for installation can be found on the PDF Installation Guide on this page. There is also a mains voltage ACE DOWN available. The 240v version does not require the in-lite® system and as such can be mixed and matched with other lights of your choosing.
The low voltage ACE DOWN wall lights are compatible with the in-lite® SHUTTER 1 accessories which simply clip to the light source, allowing easy adjustment of the beam angle and lighting effect. They are also compatible with the in-lite® FIT mounting plate accessories which are designed to allow level installation on slanted fences. These accessories are designed for a range of fittings and so require a small amount of assembly before use.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting. to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
The low voltage in-lite® ACE DOWN wall lights produce a focused beam of light from one side of the fixture, making them suitable for downlighting when mounted on walls or fences. The light source is recessed within the fixture, helping to reduce glare. in-lite® recommend spacing the ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters. Available with a Dark Grey or Corten finish as standard, with Rose Silver or White upon request.
Installation is easy using the provided screws and wall plugs. Instructions for installation can be found on the PDF Installation Guide on this page. There is also a mains voltage ACE DOWN available. The 240v version does not require the in-lite® system and as such can be mixed and matched with other lights of your choosing.
The low voltage ACE DOWN wall lights are compatible with the in-lite® SHUTTER 1 accessories which simply clip to the light source, allowing easy adjustment of the beam angle and lighting effect. They are also compatible with the in-lite® FIT mounting plate accessories which are designed to allow level installation on slanted fences. These accessories are designed for a range of fittings and so require a small amount of assembly before use.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting. to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Specification

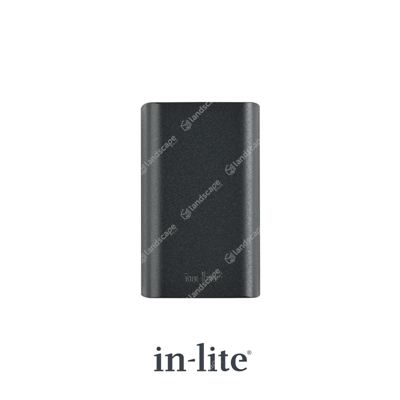

IN-LITE® ACE DOWN wall light - Dark Grey - 5.3VA - 12v - w/white (63°)
Product Code: LIN6112

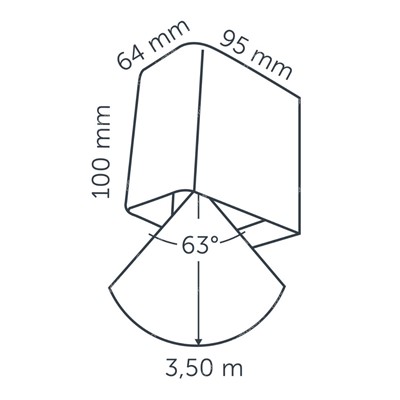

Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)
Product Code: LIN6112
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)

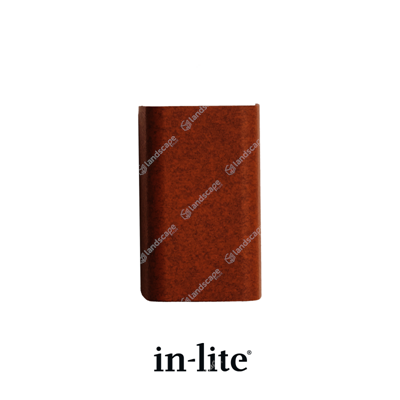

IN-LITE® ACE DOWN wall light - Corten - 5.3VA - 12v - w/white (63°)
Product Code: LIN6312
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)
Product Code: LIN6312
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)

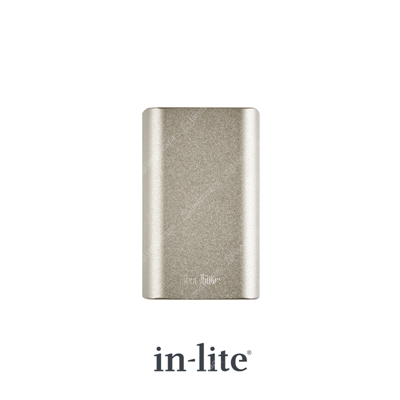

IN-LITE® ACE DOWN wall light - Rose Silver - 5.3VA - 12v - w/white (63°)
Product Code: LIN6512
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)
Product Code: LIN6512
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)

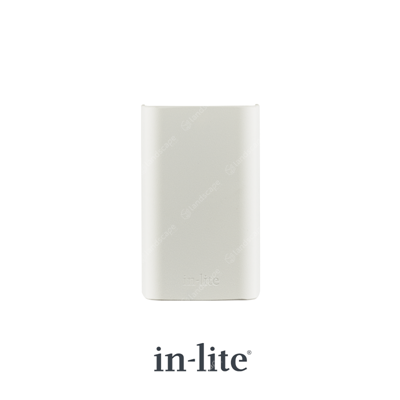

IN-LITE® ACE DOWN wall light - White - 5.3VA - 12v - w/white (63°)
Product Code: LIN6612
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)
Product Code: LIN6612
Dimensions: width 64mm; depth 95mm; height 100mm; cable length 0.6m (approx.)
