IN-LITE® LIV WALL Lights - 12v
Unhide your garden with in-lite®.
Like the in-lite® LIV bollard lights, the LIV WALL lights feature a frosted cylinder that emits a beautiful glow of light in all directions. This makes them ideal for illuminating walls, fences, or entrances. in-lite® recommend spacing the LIV WALL every 2 to 2½ meters at a height of 1.4 to 1.6 meters. Available with a Dark Grey finish as standard, with Rose Silver or White upon request.
Installation is easy using the provided screws and wall plugs. Instructions for installation can be found on the PDF Installation Guide on this page.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting. to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Like the in-lite® LIV bollard lights, the LIV WALL lights feature a frosted cylinder that emits a beautiful glow of light in all directions. This makes them ideal for illuminating walls, fences, or entrances. in-lite® recommend spacing the LIV WALL every 2 to 2½ meters at a height of 1.4 to 1.6 meters. Available with a Dark Grey finish as standard, with Rose Silver or White upon request.
Installation is easy using the provided screws and wall plugs. Instructions for installation can be found on the PDF Installation Guide on this page.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting. to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Specification

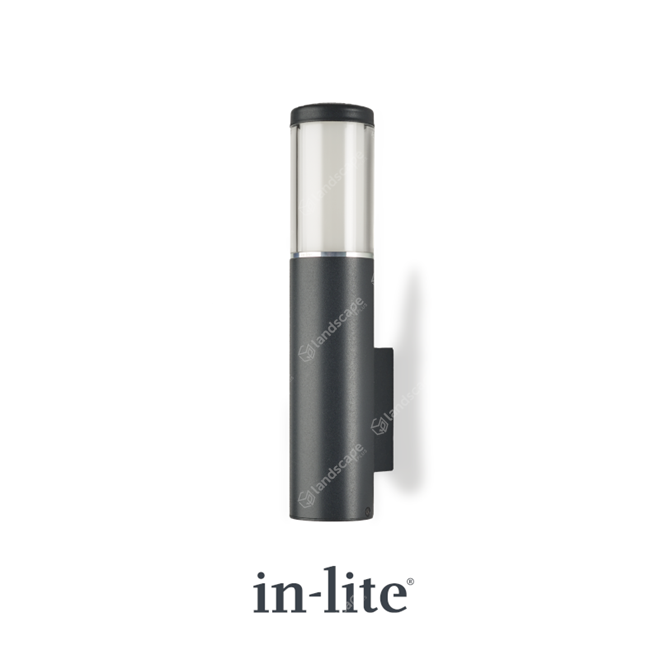

IN-LITE® LIV WALL light - Dark Grey - 2.5VA - 12v - w/white (360°)
Product Code: LIN6106

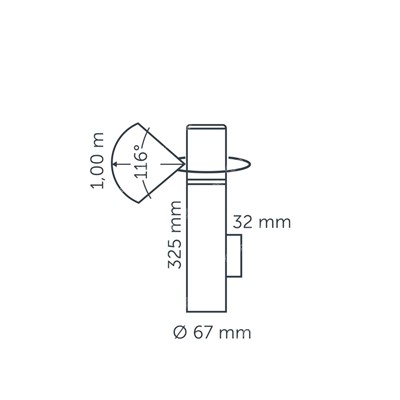

Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)
Product Code: LIN6106
Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)

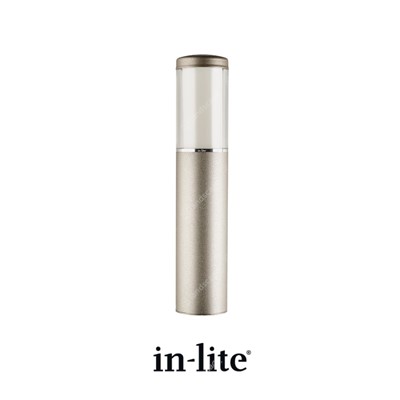

IN-LITE® LIV WALL light - Rose Silver - 2.5VA - 12v - w/white (360°)
Product Code: LIN6506
Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)
Product Code: LIN6506
Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)

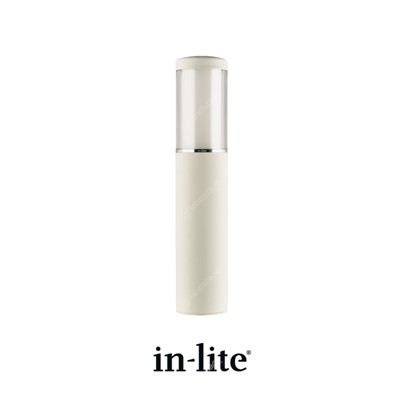

IN-LITE® LIV WALL light - White - 2.5VA - 12v - w/white (360°)
Product Code: LIN6606
Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)
Product Code: LIN6606
Dimensions: Ø of body 67mm; height of body 325mm; depth of base 32mm; cable length 0.6m (approx.)
