IN-LITE® ACE Path Lights - 12v
Unhide your garden with in-lite®.
The in-lite® ACE path lights are ideal for lighting driveways or pathways thanks to their fully adjustable light source that can be tilted to completely change the lighting effect and distance. Depending on how they are adjusted, they can project light up to 3.5m from one side of the fitting. Due to their wide beam pattern, in-lite® recommend a spacing of between 2m and 3m for the ACE fittings. Available with a Dark Grey or Corten finish as standard, with Rose Silver or White upon request.
They are easily hidden amongst planting when fixed in soft ground using the provided spike. Alternatively they can be surface mounted using the provided bracket, screws and plugs. Please see the Installation Guide PDF on this page for more instructions.
There is also a taller version available, the ACE HIGH, that shines light in two opposing directions.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
The in-lite® ACE path lights are ideal for lighting driveways or pathways thanks to their fully adjustable light source that can be tilted to completely change the lighting effect and distance. Depending on how they are adjusted, they can project light up to 3.5m from one side of the fitting. Due to their wide beam pattern, in-lite® recommend a spacing of between 2m and 3m for the ACE fittings. Available with a Dark Grey or Corten finish as standard, with Rose Silver or White upon request.
They are easily hidden amongst planting when fixed in soft ground using the provided spike. Alternatively they can be surface mounted using the provided bracket, screws and plugs. Please see the Installation Guide PDF on this page for more instructions.
There is also a taller version available, the ACE HIGH, that shines light in two opposing directions.
Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Specification

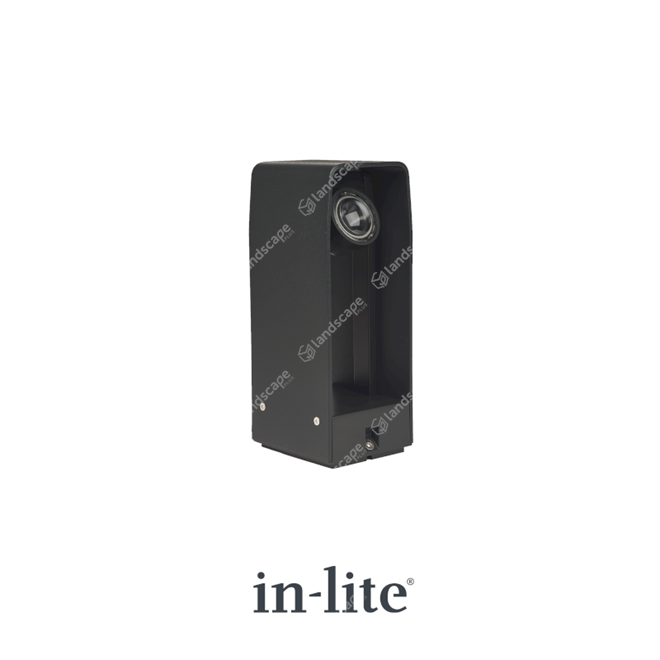

IN-LITE® ACE path light (205mm) - Dark Grey - 5.3VA - 12v - w/white (63°)
Product Code: LIN2122

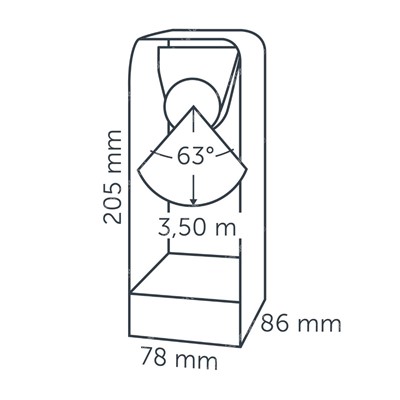

Dimensions: width of body 78mm; depth of body 86mm; height of body 205mm; cable length 0.6m (approx.)
Product Code: LIN2122
Dimensions: width of body 78mm; depth of body 86mm; height of body 205mm; cable length 0.6m (approx.)

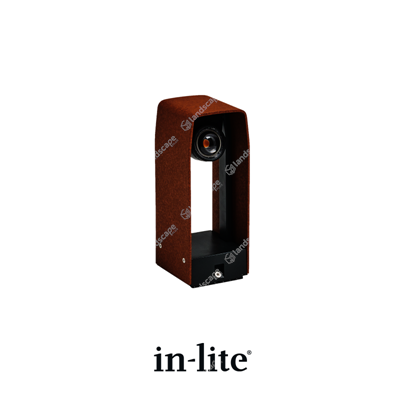

IN-LITE® ACE path light (205mm) - Corten - 5.3VA - 12v - w/white (63°)
Product Code: LIN2322
Dimensions: width of body 78mm; depth of body 86mm; height of body 205mm; cable length 0.6m (approx.)
Product Code: LIN2322
Dimensions: width of body 78mm; depth of body 86mm; height of body 205mm; cable length 0.6m (approx.)
IN-LITE® ACE path light (205mm) - Rose Silver - 5.3VA - 12v - w/white (63°)
Product Code: LIN2522
Product Code: LIN2522
IN-LITE® ACE path light (205mm) - White - 5.3VA - 12v - w/white (63°)
Product Code: LIN2622
Product Code: LIN2622
