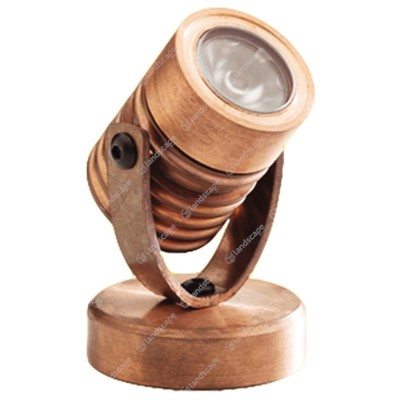

LuxR M1 LED Pondlights (with weighted base) - copper - 12v
LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years.
Designed with a weighted base, these copper LuxR LED pondlights are specifically designed to be used in an underwater application. Despite their built-in LED chip, these fittings should be powered by a 12v transformer to ensure total safety when submerged, as the standard M1 LuxR circuits (350mA) have the potential to exceed the low voltage levels required for underwater use when multiple fittings are run on the same circuit.
These fittings are also available in high quality stainless steel or powder coated aluminium.

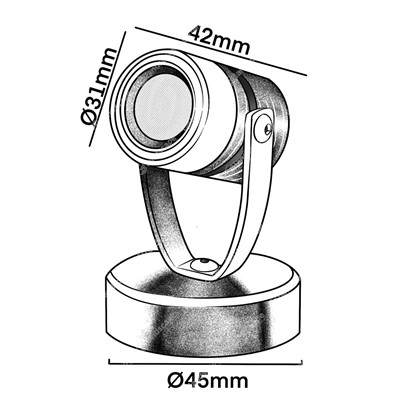

Dimensions: Ø of body 31mm; length of body 42mm; Ø of base 45mm (approx); cable length 3m; beam angle 30° or 53°; also available with white, blue, red, amber & green LEDs upon request
Specification
Beam Angle |
30° |
Beam Angle |
53° |
Cable Length |
3m |
Guarantee |
10 Years (body) |
Guarantee |
5 Years (internal) |
IP Rating |
IP68 |
Light Material/Colour |
Copper |
Lumen Output |
80 lm |
Type of Light |
Pondlight |
Voltage (input) |
12v |
Wiring Required |
Parallel |
LuxR M1 LED pondlight with weighted base - copper - 1w - 12v - w/white (53°)
Product Code: LUX1174
Dimensions: Ø of body 31mm; length of body 42mm; Ø of base 45mm (approx); runs on 12v transformer; cable length 3m; beam angle 53°
LuxR M1 LED pondlight with weighted base - copper - 1w - 12v - w/white (30°)
Product Code: LUX1175
Dimensions: Ø of body 31mm; length of body 42mm; Ø of base 45mm (approx); runs on 12v transformer; cable length 3m; beam angle 30°
