Multi-outlet Constant Voltage Transformers for Replacement LED Lamps - 12v
At Landscapeplus, all our transformers are designed specifically for use outdoors, are manufactured to our own specification and are guaranteed for five years. They are based around a top quality isolating transformer, embedded in polyurethane resin (IP67) to offer a high level of safety, and now include built-in surge protection to prevent damage to remote controls. They also have an automatically re-setting thermal and overload cut-out for added reliability, and can be dimmed provided that the dimmer has an inductive load.
Unique to Landscapeplus, our (IP67) transformers have multiple lead-outs, one per light fitting. This reduces the need for large cables, making installation quick and easy. All our transformers have 1m of cable on the inlet, and come complete with bullet connectors attached to each 1m long outlet to save time on site.
For added safety they now include built-in resettable fuses, (one for each outlet) to protect the low-voltage side from direct shorts as well as surge protection to prevent damage to remote controls.
Specification
Cable Length |
1m each side |
Construction Type |
Wire Wound |
Guarantee |
5 Years |
IP Rating |
IP67 |
Voltage (input) |
240v |
Voltage (output) |
12v |

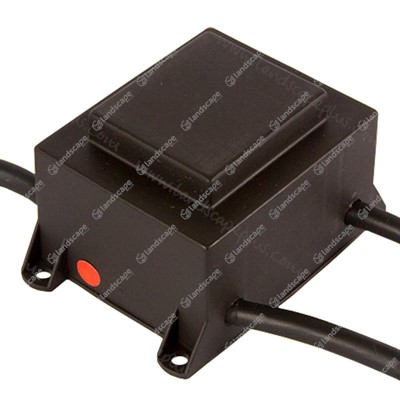

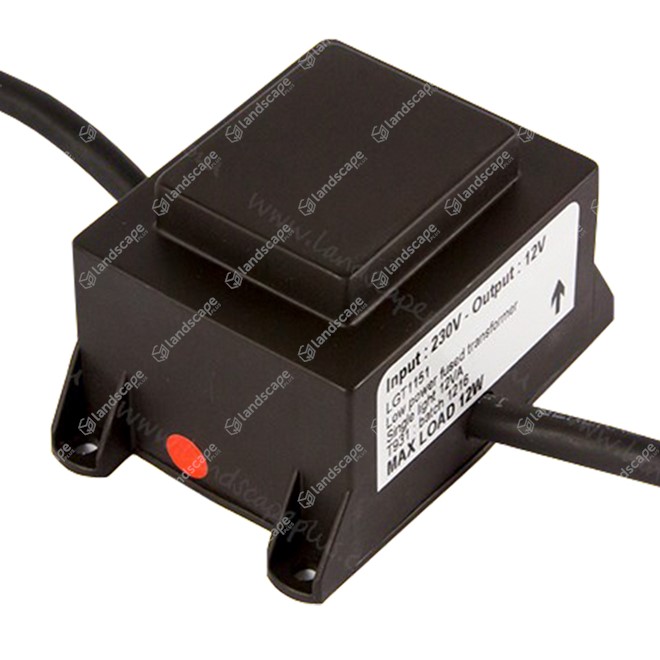

Single light (low power) fused constant voltage outdoor transformer - 12v (AC) - 12w - IP67
Product Code: LGT1151
Dimensions: Length: 82mm; Width: 54mm; Height: 48mm; cable length 1m (each side)

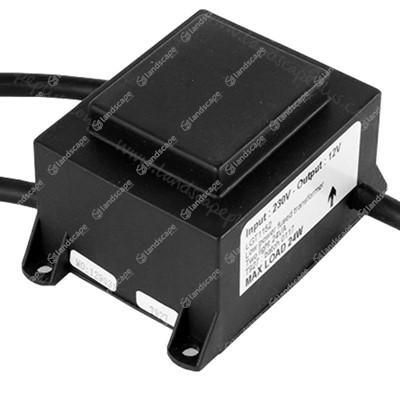

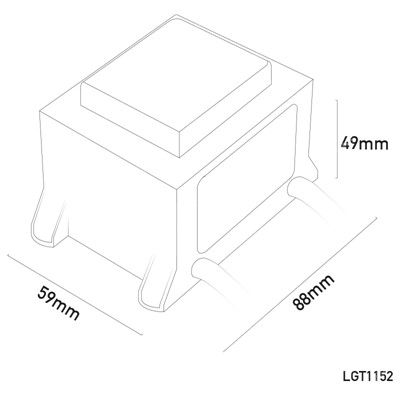

Two light (low power) fused constant voltage outdoor transformer - 12v (AC) - 24w - IP67
Product Code: LGT1152
Dimensions: Length: 88mm; Width: 59mm; Height: 49mm; cable length 1m (each side)

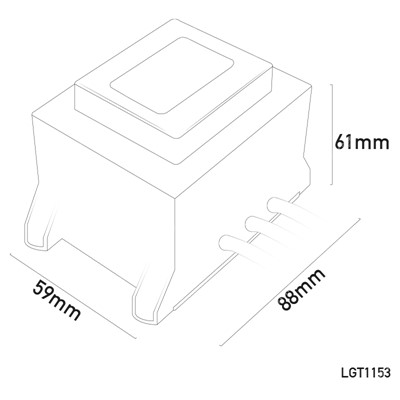

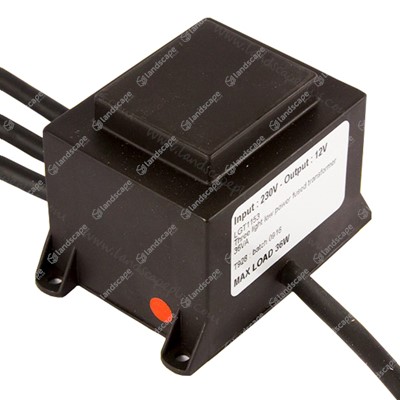

Three light (low power) fused constant outdoor transformer - 12v (AC) - 36w - IP67
Product Code: LGT1153
Dimensions: Length: 88mm; Width: 59mm; Height: 61mm; cable length 1m (each side)

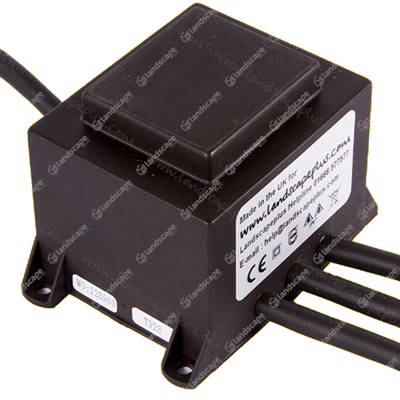

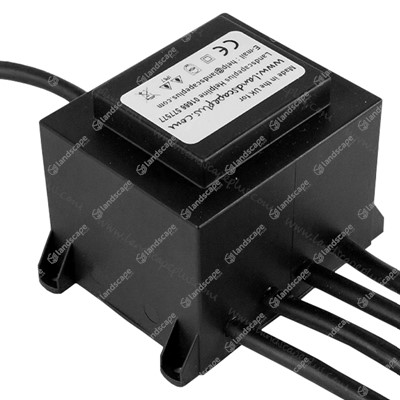

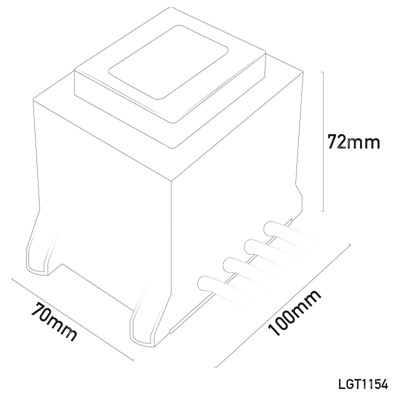

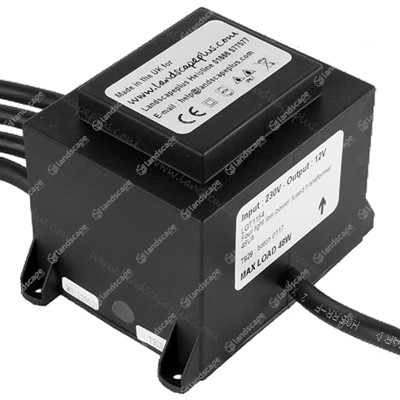

Four light (low power) fused constant voltage outdoor transformer - 12v (AC) - 48w - IP67
Product Code: LGT1154
Dimensions: Length: 100mm; Width: 70mm; Height: 72mm; cable length 1m (each side)
