LuxR M1 LED Wayfinder Path Lights - s/steel
LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years. As they run on 350mA drivers, any of LuxR M1 & Collingwood Standard Power LED fittings can be combined on the same circuit and are dimmable when used with our power supplies.

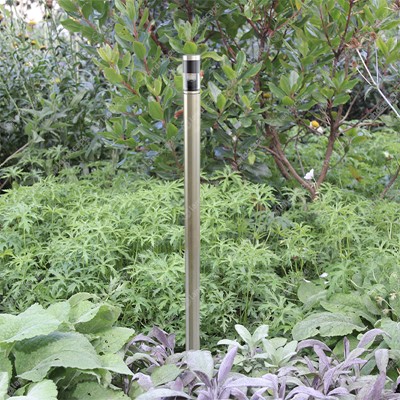

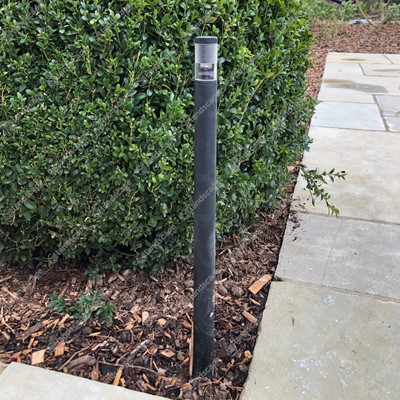

Manufactured from the best quality 316 stainless steel, copper and powder coated aluminium, the Wayfinder is a beautifully finished miniature path light that is perfect for lighting the front edge of a border, path, terrace or deck. The head of the fitting has been carefully designed to provide asymmetric light distribution (180 degrees), giving a perfect wash of light without glare since none is emitted above the horizontal. They are also available in
solid copper or high quality
powder-coated aluminium.

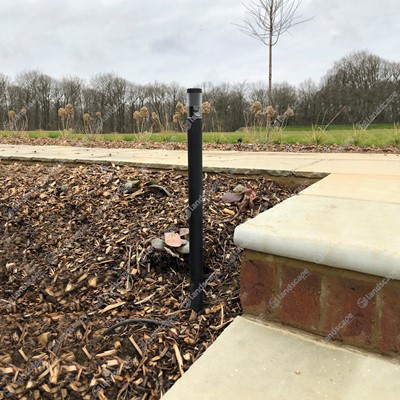

These fittings come with a 45° cut end for spike mounting as standard, however they can be specified at the point of ordering to feature a flat base, allowing them to be surface mounted when used in conjunction with the
LuxR M1 pole/path light surface mounting brackets.

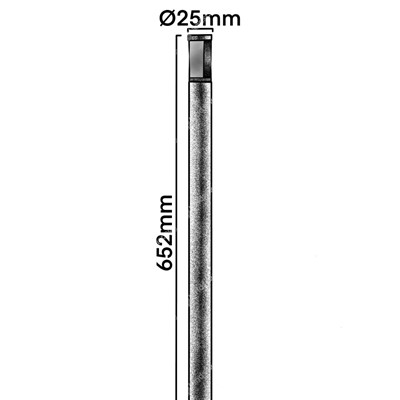

Dimensions: Ø of body 25mm; length of fitting 652mm (approx); cable length 1m; asymmetric wash (180°); also available with white, blue, red, amber & green LEDs.
Specification
Beam Angle |
Asymmetric wash |
Cable Length |
1m |
Guarantee |
10 Years (body) |
Guarantee |
5 Years (internal) |
IP Rating |
IP68 |
Light Material/Colour |
Stainless Steel |
Lumen Output |
80 lm |
Power Source |
350mA Standard Power LED |
Type of Light |
Path Light |

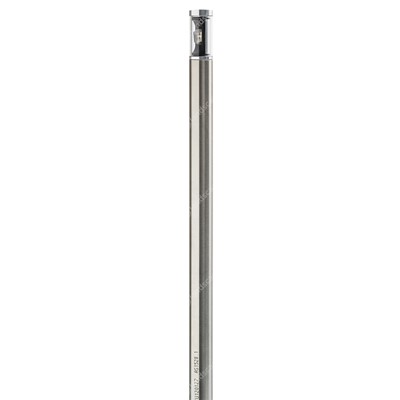

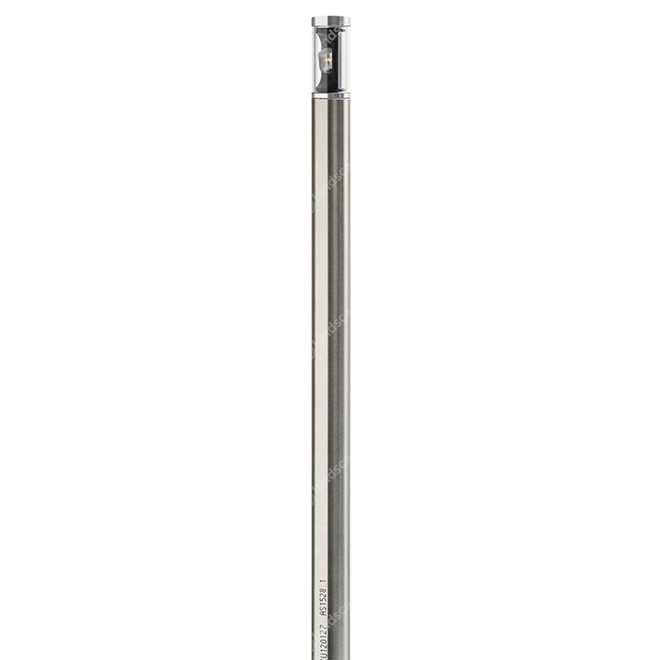

LuxR M1 LED Wayfinder path light - s/steel - 1w - 350mA - w/white (asymmetric wash)
Product Code: LUX3012
Dimensions: Ø of body 25mm; length of fitting 652mm (approx); cable length 1m; asymmetric wash (180°); also available with white, blue, red, amber & green LEDs.
