Oase Pump Vaults

Pump vaults are a crucial element within pondless water feature systems as they allow any pumps to be housed within a flooded, yet easily accessible, chamber. This easy access makes regular maintenance far more simple on site.

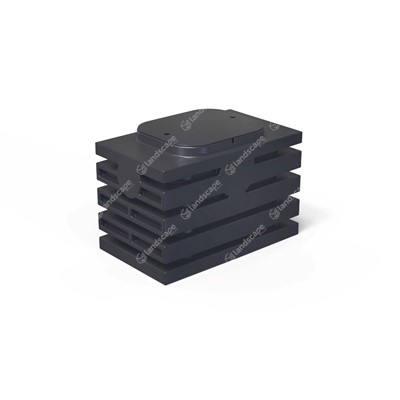

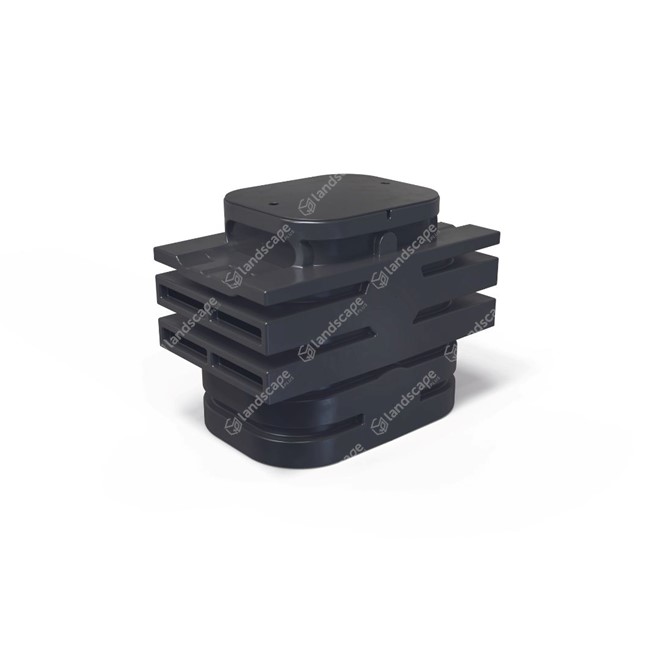

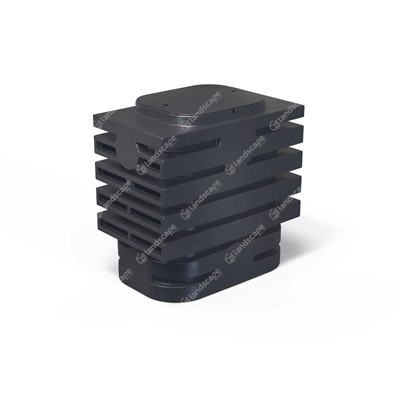

Oase have re-designed their popular range of pump vaults to make them more robust and easier to install. The main change is the new rectangular shape that is designed to match perfectly with the Oase Maxima crates, with each pump vault taking up the same floor space as a single Maxima crate. To ensure ample flow into the chamber, these pump vaults feature a number of rectangular inlets located at different heights, reducing the risk of the pumps running dry. There are cut-outs located on the side of the pump vaults that can be used to trail pipework from the vault, up to a maximum outer diameter of 64mm (2½").

The Pump Vault 20000 is suitable for use alongside the Maxima 60 crate, and is rated to a max. flow rate of 20,000 litres per hour (333 l/min). On the other hand, the Pump Vault 60000 is suitable for use alongside the Maxima 120 crates and is rated to a max. flow rate of 60,000 litres per hour (1,000 l/min).

Also available are the Pump Vault Extensions that can be easily fitted on top of pump vaults to increase their height. Multiple pump vault extensions can be used together as required.
