Pontec PondoCompact Fountain Pumps

With a wide selection of maximum flow rates, the Pontec PondoCompact range are an affordable yet reliable option for pumping water to water features. With options ranging from a tiny 5 l/min all the way up to an impressive 83 l/min, they feature compact designs that aid in hiding the pump from view once installed, which makes them ideal for use in water feature reservoir systems or smaller ponds. They also include a built in manual flow control that can be adjusted to achieve the desired aesthetic from the water feature.

The PondoCompact 2000, 3000 and 5000 can even be dry installed so long as they are gravity fed to ensure adequate flow of water through the motor. This further extends the usability of these pumps as they can be completely hidden from view when installed in this manner.

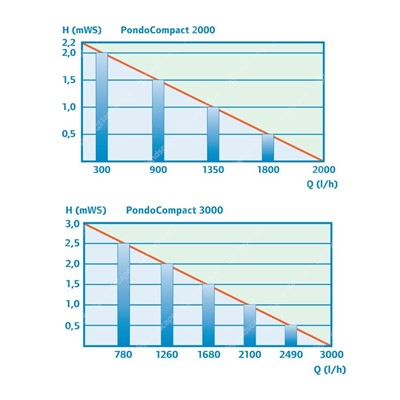

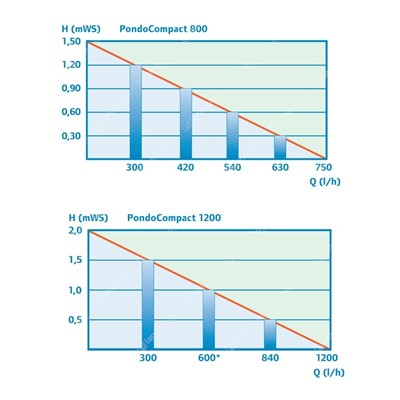

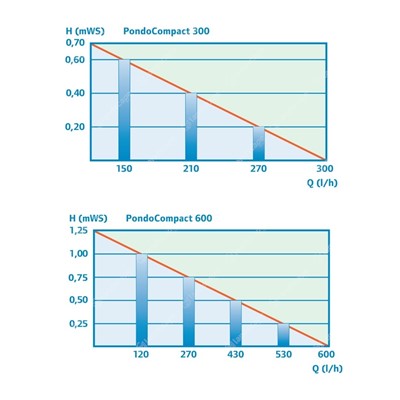

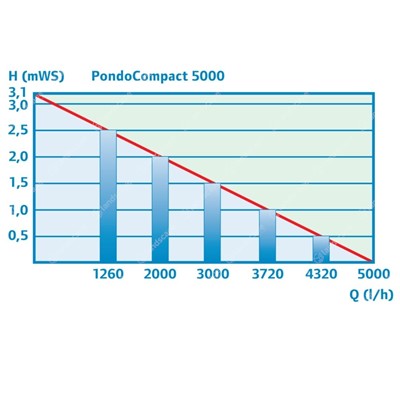

Performance curves for each model can be found in the images section on this page, showing the flow rates achieved at different head heights.

Specification

Adjustment Flow control
Cable Length 10m
Guarantee 2 Years
Pontec PondoCompact 300
Product Code: PNP1404
Dimensions: Length 45mm; Width 40mm; Height 45mm (approx); Power consumption 5w; Cable length 10m; Max. flow 5 l/min; Max head height 0.7m; Hose connection 13mm (½")
Pontec PondoCompact 600
Product Code: PNP1406
Dimensions: Length 62mm; Width 45mm; Height 78mm (approx); Power consumption 11w; Cable length 10m; Max. flow 10 l/min; Max head height 1.25m; Hose connection 13mm (½")
Pontec PondoCompact 800
Product Code: PNP1408
Dimensions: Length 75mm; Width 55mm; Height 90mm (approx); Power consumption 20w; Cable length 10m; Max. flow 12 l/min; Max head height 1.5m; Hose connection 13mm (½") / 19mm (¾")
Pontec PondoCompact 1200
Product Code: PNP1412
Dimensions: Length 75mm; Width 55mm; Height 90mm (approx); Power consumption 25w; Cable length 10m; Max. flow 20 l/min; Max head height 2m; Hose connection 13mm (½") / 19mm (¾")
Pontec PondoCompact 2000
Product Code: PNP1420
Dimensions: Length 170mm; Width 75mm; Height 120mm (approx); Power consumption 32w; Cable length 10m; Max. flow 33 l/min; Max head height 2.2m; Hose connection 19mm (¾") / 25mm (1")
Pontec PondoCompact 3000
Product Code: PNP1430
Dimensions: Length 170mm; Width 75mm; Height 120mm (approx); Power consumption 55w; Cable length 10m; Max. flow 50 l/min; Max head height 3m; Hose connection 19mm (¾") / 25mm (1")
Pontec PondoCompact 5000
Product Code: PNP1450
Dimensions: Length 170mm; Width 75mm; Height 120mm (approx); Power consumption 82w; Cable length 10m; Max. flow 83 l/min; Max head height 3.1m; Hose connection 19mm (¾") / 25mm (1")
