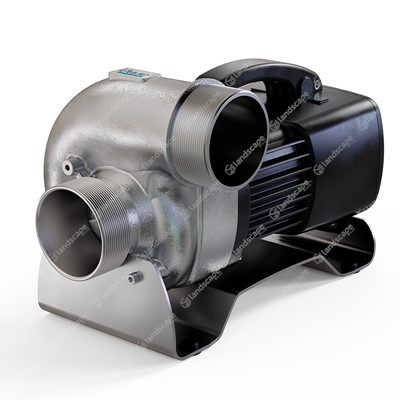

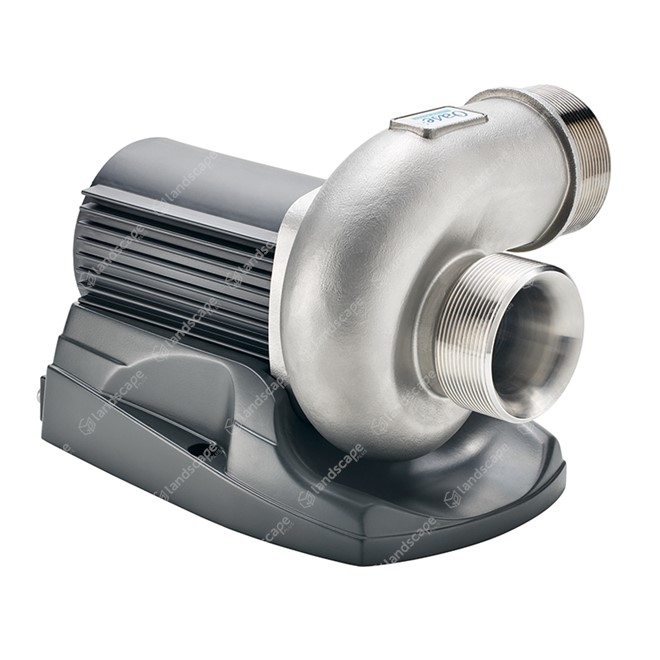

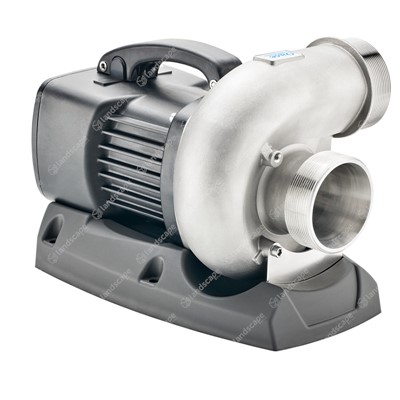

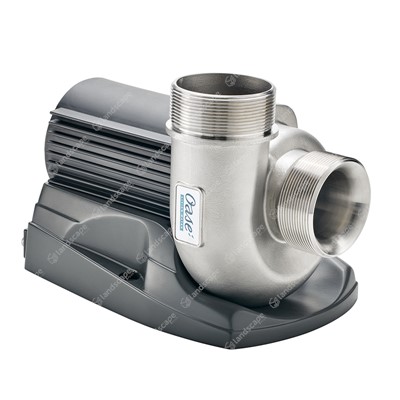

Oase AquaMax Eco Titanium Large Filter Pumps

With a compact design, these filter pumps feature some of the most impressive flow rates available within the Oase range, without comprising reliability and longevity.

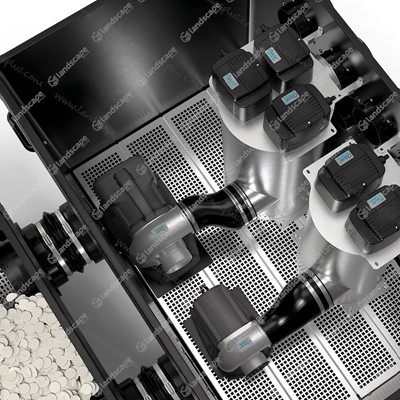

They are mainly designed for use within the Oase ProfiClear drum filters, specifically in a gravity fed system, to pump the mechanically and biologically filtered water back to the pond. They are suited perfectly to this role, as their massive flow rate is required to ensure that the whole drum filter system is as efficient as possible. They can be connected easily to the Oase Bitron Premium UVC pond clarifiers, with a wide selection of connectors available from Oase to match the individual application or project.

Just like the drum filter itself, these pumps have EGC connection capability through the use of the Oase FM Master - EGC, allowing them to be electronically dimmed to match the filtration required throughout the seasons, allowing power to be saved during the less demanding winter months where less filtration, and therefor a lower flow rate, is required.

These pumps can be installed submerged underwater or dry-mounted.

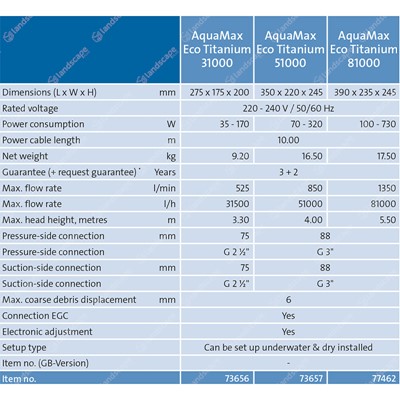

Specification

Adjustment Electronically dimmable
Cable Length 10m
EGC Compatible Yes
Guarantee 5 Years
Voltage (input) 240v
Oase AquaMax Eco Titanium 31000 filter pump - 2½"
Product Code: PNP7370

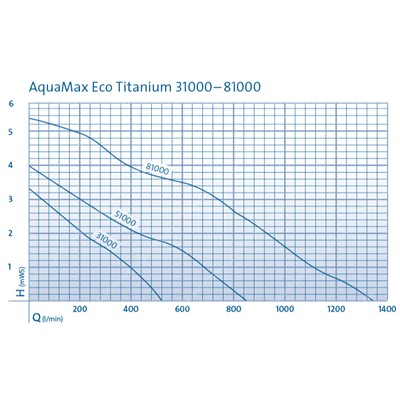

Dimensions: Length 275mm; Width 175mm; Height 200mm (approx); Power consumption 35 - 170w; Max. flow rate 525 l/min; Max. head height 3.3m; Inlet thread size 2½"; Outlet thread size 2½"
Oase AquaMax Eco Titanium 51000 filter pump - 3"
Product Code: PNP7380
Dimensions: Length 350mm; Width 220mm; Height 245mm (approx); Power consumption 70 - 320w; Max. flow rate 850 l/min; Max. head height 4m; Inlet thread size 3"; Outlet thread size 3"
Oase AquaMax Eco Titanium 81000 filter pump - 3"
Product Code: PNP7390
Dimensions: Length 390mm; Width 235mm; Height 245mm (approx); Power consumption 100 - 730w; Max. flow rate 1350 l/min; Max. head height 5.5m; Inlet thread size 3"; Outlet thread size 3"
