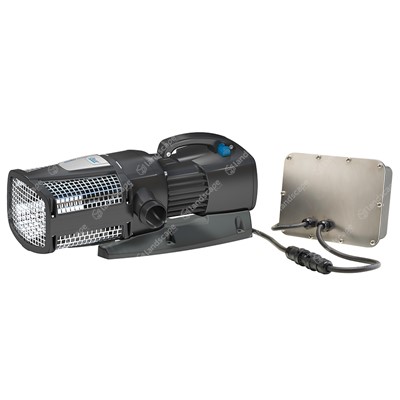

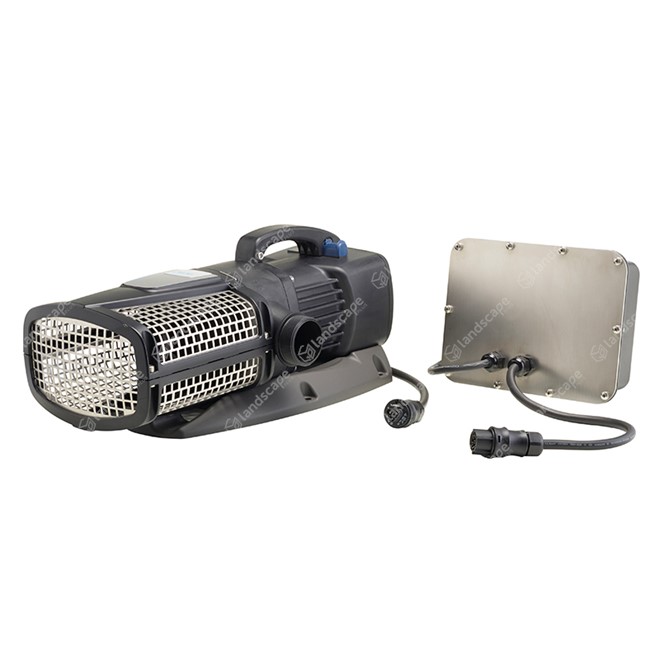

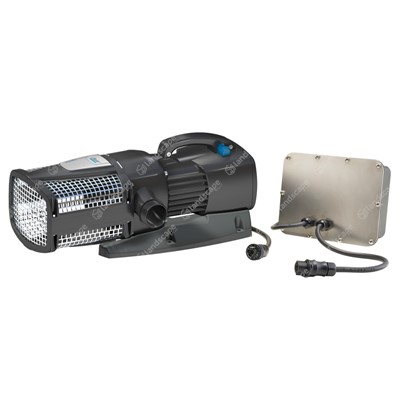

Oase AquaMax Eco Expert Watercourse Pumps - 12v
New from Oase in 2021, these AquaMax Eco Expert watercourse pumps combine Oase's highly efficient motors with the safety of 12v power, making them ideal for use in swimming ponds, natural pools or public spaces. Thanks to their excellent flow rates, these pumps can be used for medium/large watercourses and even pump fed drum filter systems.
The provided transformer, constructed from high quality stainless steel, is developed in-house by Oase to stand up to outdoor conditions while also remaining EGC compatible through the use of the
Oase FM Master - EGC. This allows the pump to be electronically dimmed to achieve the desired flow rate. The stainless steel filter basket prevents any particles larger than 11mm from entering the pump and damaging the mechanism when used in a submerged application, while any smaller particles can be drawn through the pump without causing any damage. This basket filter can also be removed to access the threaded inlet which can be used for a connection to hose, allowing the pump to be dry installed outside of the pool or pond.
These pumps can be installed submerged underwater or dry-mounted.
Inlet thread size 2" BSP - male; Outlet thread size 2" BSP - male; Hose connection 38mm/50mm (1½" / 2"); Input voltage to transformer 240v; Output voltage from transformer to pump 12v

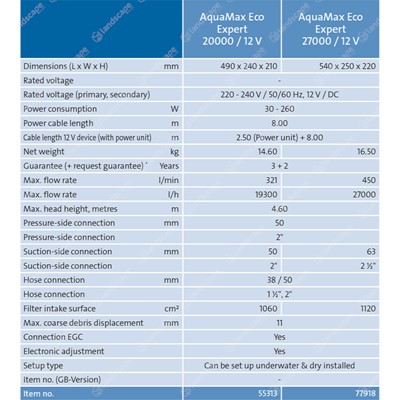

Specification
Adjustment |
Electronically dimmable |
Cable Length |
2.5m (mains side) |
Cable Length |
8m (low voltage) |
EGC Compatible |
Yes |
Guarantee |
3 + 2 years |
Inlet Thread |
2" BSP - male |
Outlet Thread |
2" BSP - male |
Power Consumption |
Max. 260w |
Voltage (input) |
240v |
Voltage (output) |
12v |
Oase AquaMax Eco Expert 20000 watercourse pump - 12v - 2"
Product Code: PNP7520

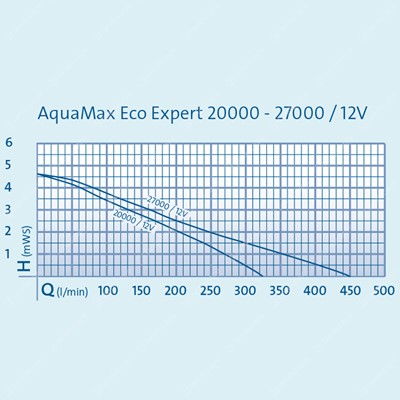

Dimensions: Length 490mm; Width 240mm; Height 210mm (approx); Power consumption 30 - 260w; Max. flow rate 321 l/min; Max. head height 4.6m; Input voltage to transformer 240v; Output voltage from transformer to pump 12v
Oase AquaMax Eco Expert 27000 watercourse pump - 12v - 2"
Product Code: PNP7530
Dimensions: Length 540mm; Width 250mm; Height 220mm (approx); Power consumption 30 - 260w; Max. flow rate 450 l/min; Max. head height 4.6m; Input voltage to transformer 240v; Output voltage from transformer to pump 12v
