Hunter Water Meters With Electrical Output

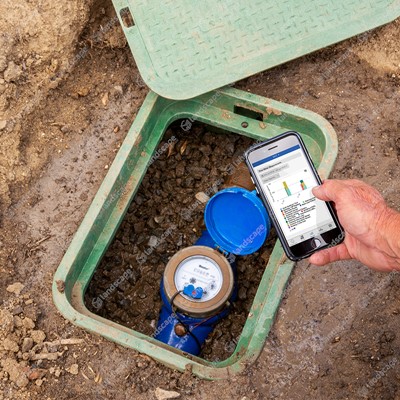

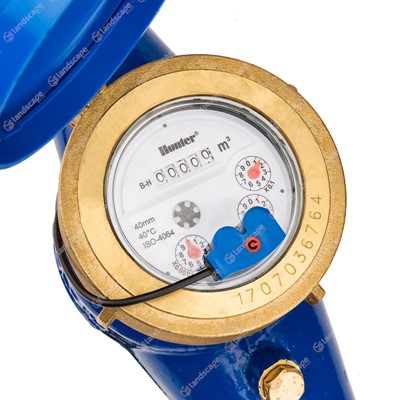

These Hunter water meters are designed to be connected to the Hunter Pro-HC Hydrawise irrigation controllers via the electrical outputs, but can also be used as a manually read water meter if required. Once wired to the controller the meter can be read through the Hydrowise app. This allows for flow, total water usage and zone water usage monitoring, as well as leak detection and instant high/low flow alerts. They should be installed horizontally, ensuring the flow of water is in the correct direction.
Specification

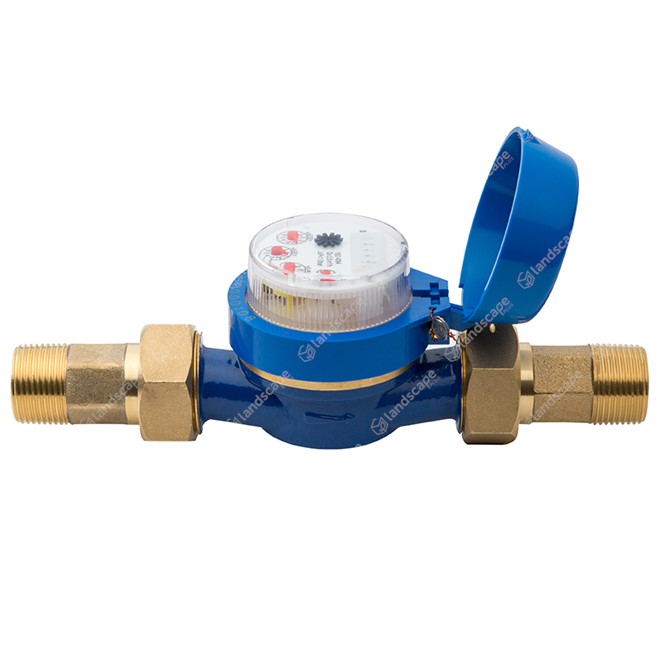

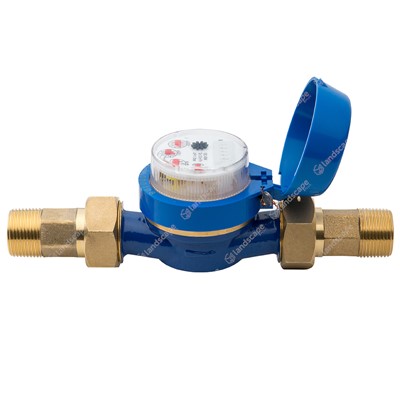

Hunter water meter with electrical output - ¾" BSP male/male
Product Code: UNF4550
Dimensions: length 232mm; depth 80mm; height 80mm (approx); recommended maximum flow 60 l/min
Product Code: UNF4550
Dimensions: length 232mm; depth 80mm; height 80mm (approx); recommended maximum flow 60 l/min
Hunter water meter with electrical output - 1" BSP male/male
Product Code: UNF4552
Dimensions: length 262mm; depth 80mm; height 93mm (approx); recommended maximum flow 110 l/min
Product Code: UNF4552
Dimensions: length 262mm; depth 80mm; height 93mm (approx); recommended maximum flow 110 l/min

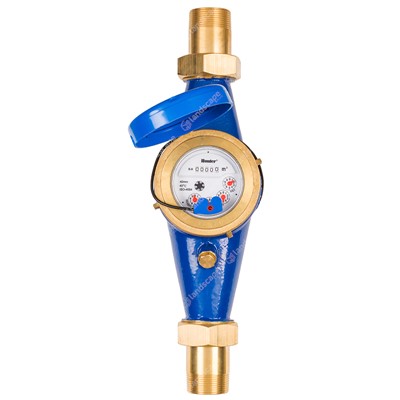

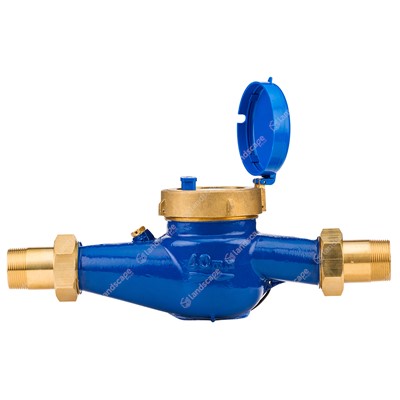

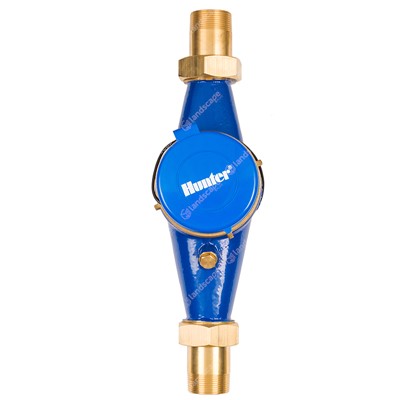

Hunter water meter with electrical output - 1½" BSP male/male
Product Code: UNF4556
Dimensions: length 431mm; depth 125mm; height 162mm (approx); recommended maximum flow 250 l/min
Product Code: UNF4556
Dimensions: length 431mm; depth 125mm; height 162mm (approx); recommended maximum flow 250 l/min
Hunter water meter with electrical output - 2" BSP male/male
Product Code: UNF4558
Dimensions: length 447mm; depth 125mm; height 162mm (approx); recommended maximum flow 400 l/min
Product Code: UNF4558
Dimensions: length 447mm; depth 125mm; height 162mm (approx); recommended maximum flow 400 l/min
