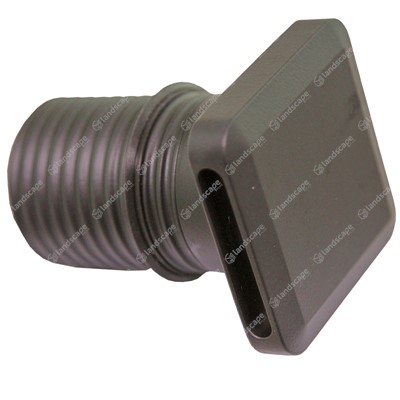

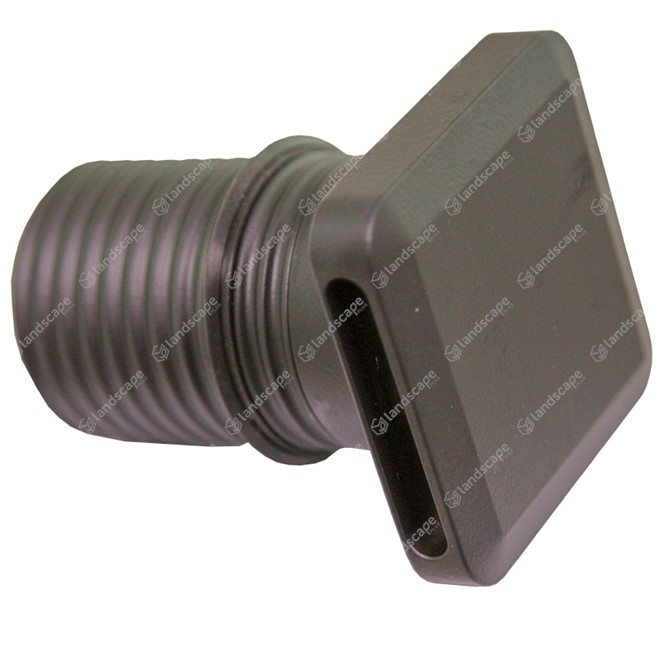

LuxR M4 LED Square Deck/Path Lights Quarters - black
LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years. As they run on 700mA drivers, any of LuxR M2, LuxR M4, PURE LED and Collingwood High Power LED fittings can be combined on the same circuit when used with our power supplies.
These square deck/path lights are small low-voltage dimmable feature lights that produces a wash of light from the opening(s) on their low-profile square bezel. They can be used to illuminate the wall surface adjacent to step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications. They are available with one or two quarter openings, with the two quarters featuring openings on opposite sides of the bezel. They are also available in marine grade (316) stainless steel or solid copper.

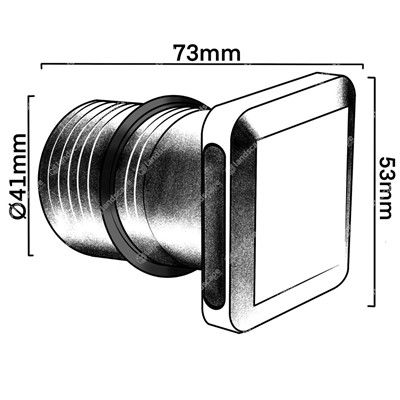

Dimensions: length of body 62mm; Ø of base 41mm; bezel 53mm square; height of bezel 11mm
Specification
Beam Angle |
2 x 90° |
Beam Angle |
90° |
Cable Length |
1m |
Guarantee |
5 Years (body) |
Guarantee |
5 Years (internal) |
IP Rating |
IP68 |
Light Colour (Kelvin) |
3000k (w/white) |
Light Material/Colour |
Powder Coated Aluminium |
Lumen Output |
360 lm |
Power Source |
700mA High Power LED |
Type of Light |
Recessed Light |
Type of Light |
Wall Light |
LuxR M4 LED square deck/path light 1 quarter - black - 4w - 700mA - w/white (90°)
Product Code: LUX8280
Dimensions: length of body 62mm; Ø of base 41mm; bezel 53mm square; height of bezel 11mm; beam angle 90°
LuxR M4 LED square deck/path light 2 quarters (opp) - black - 4w - 700mA - w/white (2x90°)
Product Code: LUX8288
Dimensions: length of body 62mm; Ø of base 41mm; bezel 53mm square; height of bezel 11mm; beam angle 2 x 90° (opposite sides)
