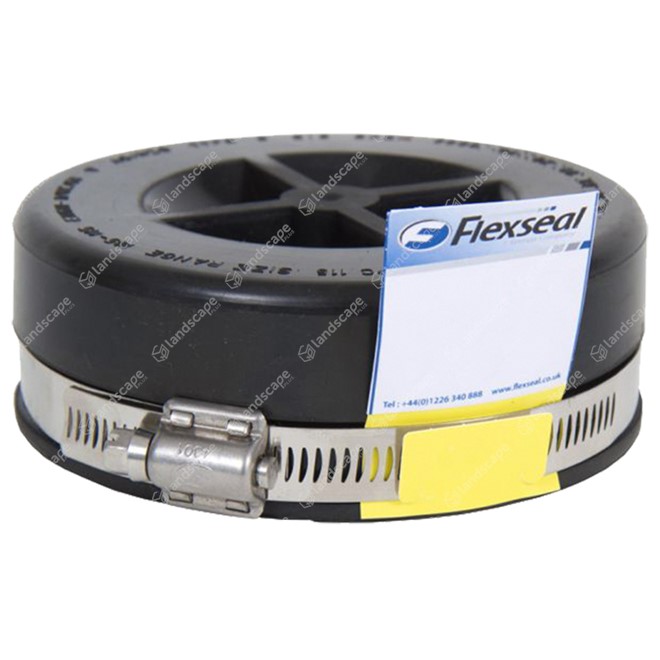

Flexseal Endcaps

PVC End Caps are ideal for capping pipe ends, clean outs and open test pipes and are suitable for above ground or underground use on cast iron, steel, copper or plastic pipe systems. The convex face allows the cap to withstand greater pressure for testing purposes and minimises ballooning.

The range is ideal for the connection of pipes with differing outside diameters whether due to the different pipe materials or pipe sizes, and also for use on smaller diameter pipes in most low/non pressure plumbing applications. Clamp bands are provided as standard in corrosion resistant Grade 1.4310 (301) stainless steel. Grade 1.4301 (304) and Grade 1.4401 (316) stainless steel clamp bands are available upon request.

Specification

Pressure Rating 0.5bar - 7.25psi
Standards BBA Certificate No. 91/2615
Temperature Range -34°c to 60°c
Tightening Torque 6Nm
Flexseal end cap (with stainless steel clamps) - black rubber - 43/50mm
Product Code: PVR4024
Flexseal end cap (with stainless steel clamps) - black rubber - 54/63mm
Product Code: PVR4026
Flexseal end cap (with stainless steel clamps) - black rubber - 80/89mm
Product Code: PVR4030
Flexseal end cap (with stainless steel clamps) - black rubber - 108/114mm
Product Code: PVR4034
