LuxR M4 LED Deck/Path Light Quarters - s/steel

LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years. As they run on 700mA drivers, any of LuxR M2, LuxR M4, PURE LED and Collingwood High Power LED fittings can be combined on the same circuit when used with our power supplies.

Constructed from marine grade (316) stainless steel or solid copper, these deck/path lights are available in the following different patterns: 1 quarter (90°), 2 quarters (180°), 3 quarters (270°) and 4 quarters (360°). This wide range of patterns provides maximum flexibility for functional lighting around the garden.

Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs

Specification

Beam Angle 90°, 2 x 90° (opp), 180°, 270° or 360°
Cable Length 1m
Guarantee 10 Years (body)
Guarantee 5 Years (internal)
IP Rating IP68
Light Material/Colour Stainless Steel
Lumen Output 360 lm
Power Source 700mA High Power LED
Type of Light Recessed Light

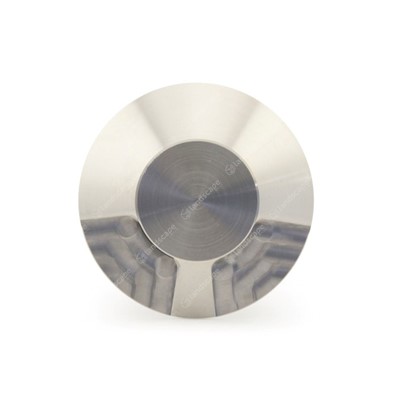

LuxR M4 LED deck/path light 1 quarter - s/steel - 4w - 700mA - w/white (90°)
Product Code: LUX8070
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

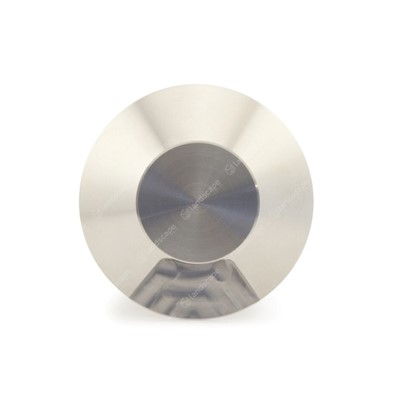

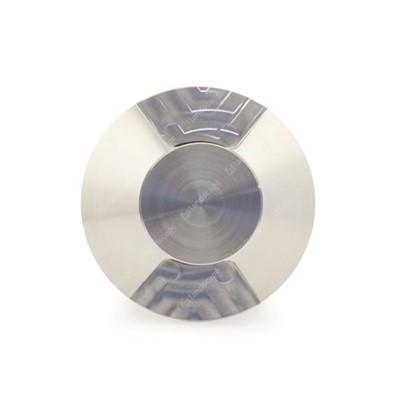

LuxR M4 LED deck/path light 2 quarters - s/steel - 4w - 700mA - w/white (180°)
Product Code: LUX8072
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

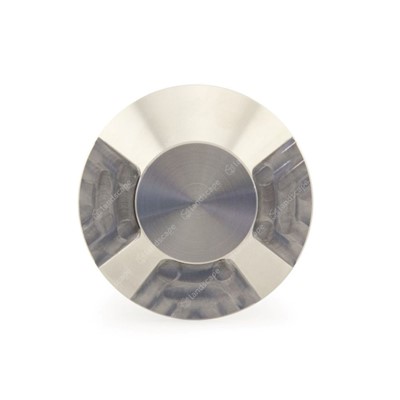

LuxR M4 LED deck/path light 3 quarters - s/steel - 4w - 700mA - w/white (270°)
Product Code: LUX8074
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

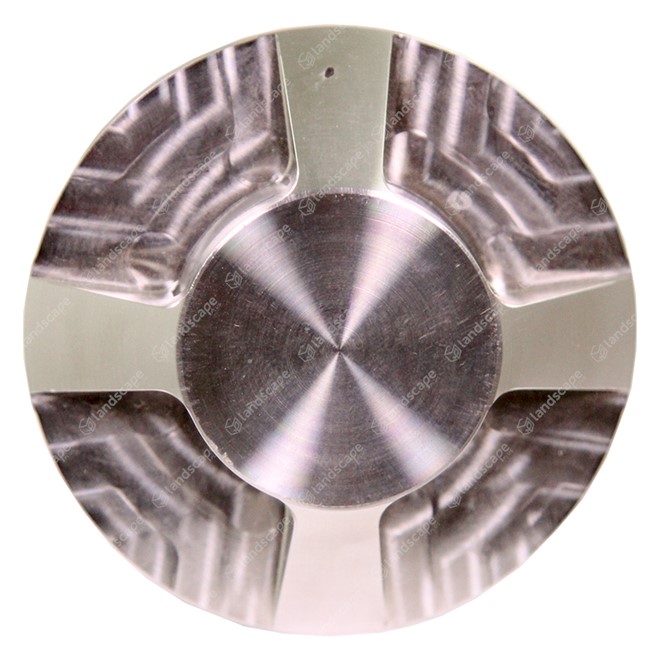

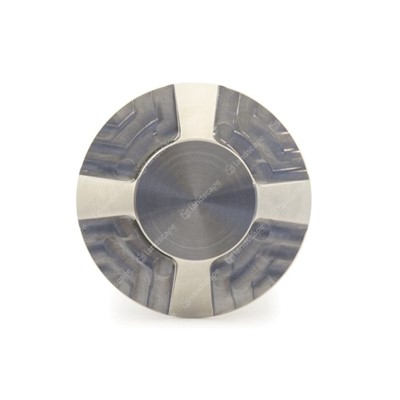

LuxR M4 LED deck/path light 4 quarters - s/steel - 4w - 700mA - w/white (360°)
Product Code: LUX8076
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.
