LuxR M2 LED Deck/Path Light Quarters - s/steel
LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years. As they run on 700mA drivers, any of LuxR M2, LuxR M4, PURE LED and Collingwood High Power LED fittings can be combined on the same circuit when used with our power supplies.
Constructed from marine grade (316) stainless steel or solid copper, these deck/path lights are available in 5 different patterns: 1 quarter (90°), 2 quarters (180°), 2 opposite quarters (2x90°), 3 quarters (270°) and 4 quarters (360°). This wide range of patterns provides maximum flexibility for functional lighting around the garden.

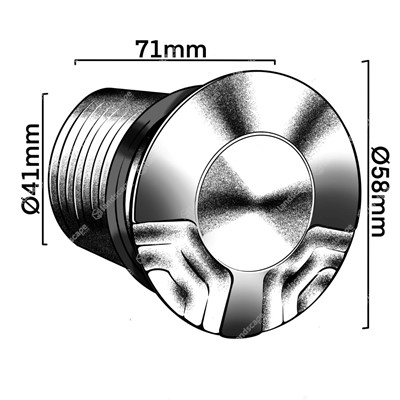

Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.
Specification
Cable Length |
1m |
Guarantee |
10 Years (body) |
Guarantee |
5 Years (internal) |
IP Rating |
IP68 |
Light Material/Colour |
Stainless Steel |
Lumen Output |
170 lm |
Power Source |
700mA High Power LED |
Type of Light |
Recessed Light |

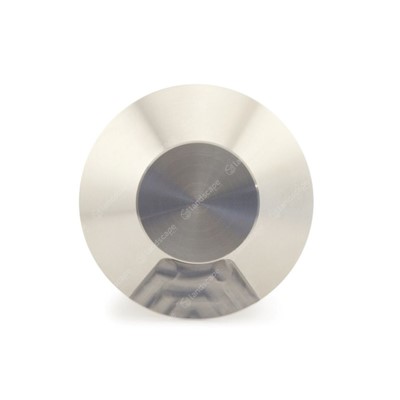

LuxR M2 LED deck/path light 1 quarter - s/steel - 2w - 700mA - w/white (90°)
Product Code: LUX5070
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

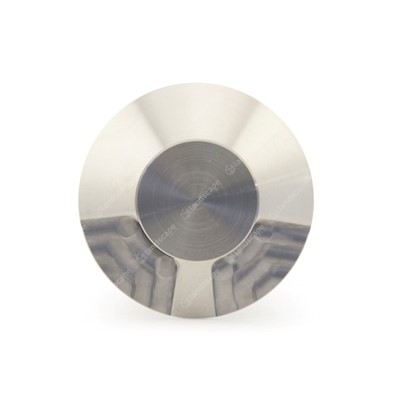

LuxR M2 LED deck/path light 2 quarters - s/steel - 2w - 700mA - w/white (180°)
Product Code: LUX5072
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.
LuxR M2 LED deck/path light 3 quarters - s/steel - 2w - 700mA - w/white (270°)
Product Code: LUX5074
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

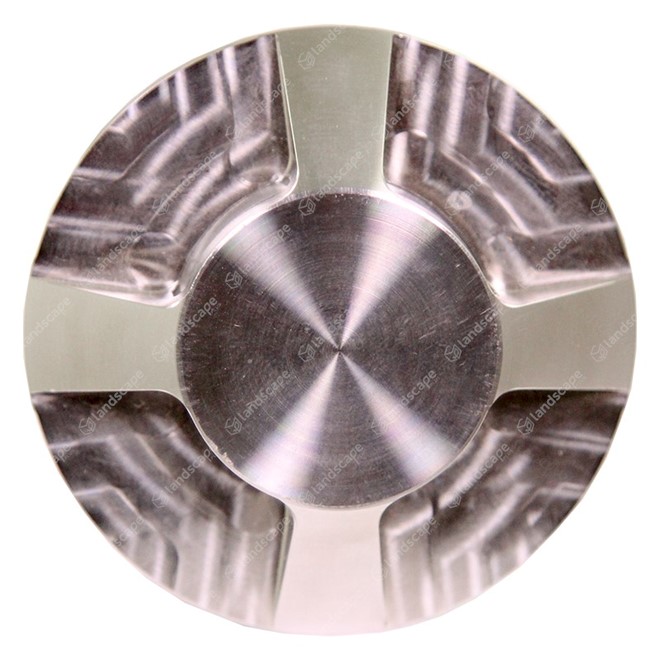

LuxR M2 LED deck/path light 4 quarters - s/steel - 2w - 700mA - w/white (360°)
Product Code: LUX5076
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.

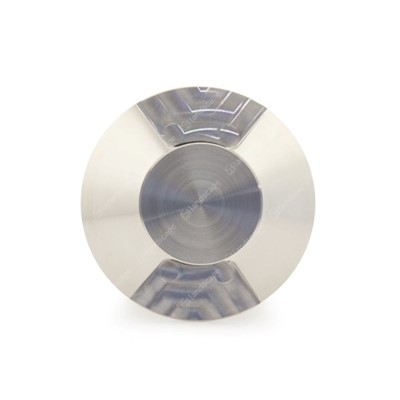

LuxR M2 LED deck/path light 2 quarters (opp) - s/steel - 2w - 700mA - w/white (2x90°)
Product Code: LUX5078
Dimensions: Ø of bezel 58mm; Ø of body 41mm; length of body 62mm (approx); cable length 1m; also available with white, blue, red, amber & green LEDs.
