LuxR LED Micro Lights - copper

LuxR LED has been specifically developed to meet the challenge of delivering high quality practical lighting, with maximum energy efficiency, and a long maintenance-free life. Incorporating an ultra efficient LED light engine with industry-leading Cree LEDs, the modular design and plug-in LED board of the LuxR lights make it a simple task to repair or upgrade any of the components. All fittings are rated IP68 (fully waterproof to 9m) and come with the confidence of a five-year electronics warranty and a guarantee on the body for up to ten years. As they run on 350mA drivers, any of LuxR M1 & Collingwood Standard Power LED fittings can be combined on the same circuit and are dimmable when used with our dimmable power supplies.

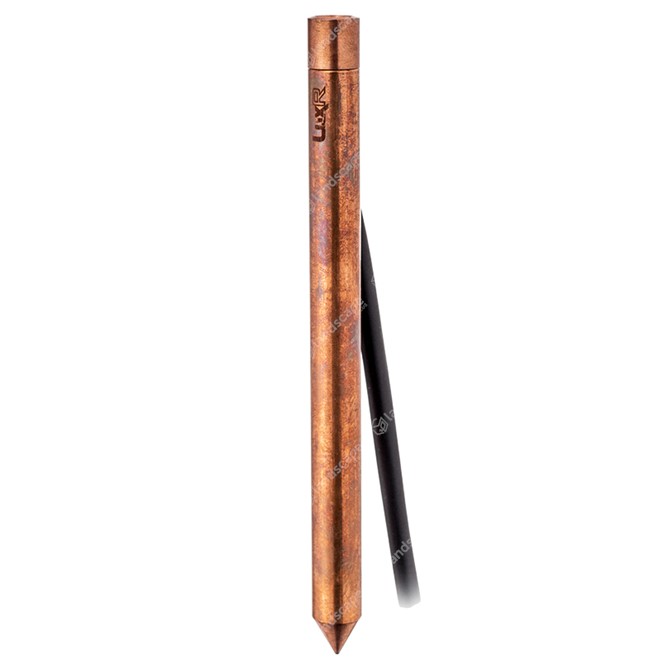

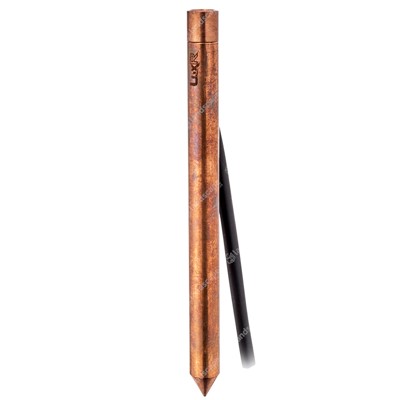

The LuxR M1 LED Micro Light is a miniature low-voltage dimmable outdoor uplight, with a 103mm spike for installing into soil. Simply plant and orient. Ideal for planters and larger pots.

Precision machined from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

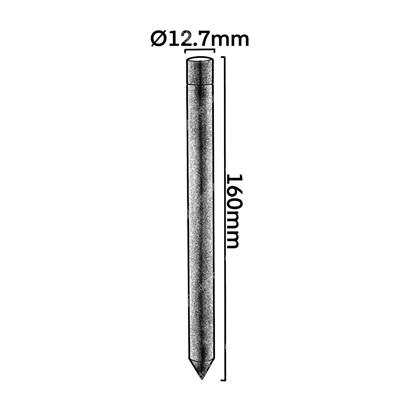

Dimensions: Ø of body 12.7mm; length of body 160mm; cable length 0.5m; also available with n/white, blue, red, amber & green LEDs.

Specification

Beam Angle 16°
Beam Angle 37°
Beam Angle 84°
Cable Length 0.5m
Guarantee 10 Years (body)
Guarantee 5 Years (internal)
IP Rating IP68
Light Colour (Kelvin) 3000k (w/white)
Light Material/Colour Copper
Lumen Output 70 lm (w/white)
Power Source 350mA Standard Power LED
LuxR LED Micro light - copper - 1w - 350mA - 1 w/white LED (84°)
Product Code: LUX0112
Dimensions: Ø of body 12.7mm; length of body 160mm; cable length 0.5m; beam angle 84°; also available with n/white, blue, red, amber & green LEDs.
LuxR LED Micro light - copper - 1w - 350mA - 1 w/white LED (37°)
Product Code: LUX0122
Dimensions: Ø of body 12.7mm; length of body 160mm; cable length 0.5m; beam angle 37°; also available with n/white, blue, red, amber & green LEDs.
LuxR LED Micro light - copper - 1w - 350mA - 1 w/white LED (16°)
Product Code: LUX0132
Dimensions: Ø of body 12.7mm; length of body 160mm; cable length 0.5m; beam angle 16°; also available with n/white, blue, red, amber & green LEDs.
